Harley’s new pro model quad set designed for use in the HIBT 3+3 model.
Overview
Harley Ingleby’s new HIBT 3+3 model has opened up a whole new world of fin configurations for surfers. When the accompanying Harley Ingleby Power twin set is purchased alongside this quad set, the following fin configurations are possible:
- Quad
- Twin
- Asymmetrical quad and twin.

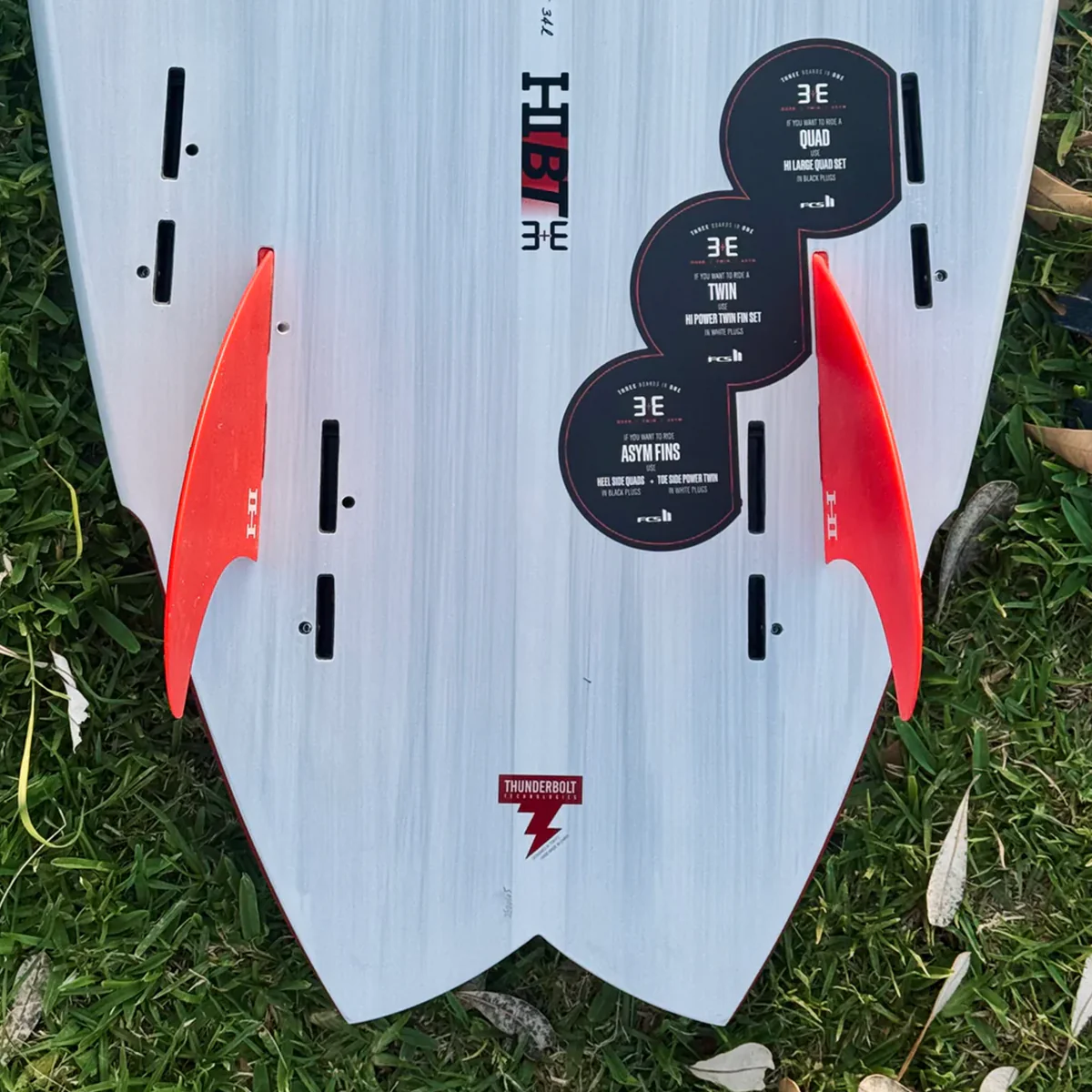

All these options are shown in the photos to illustrate the options. Please note that the twin fins are sold separately.
To quote Harley, ” Taking the versatility of the HIBT to new levels is the 3+3 fin system, letting you ride it as a true quad, true twin, or an asym fin setup. It’s like having three boards in one – super versatile, super fun”.
The set comprises the Reactor Large thruster template and the Performer Large quad rear fins. As a thruster this pivotal set encourages tighter radius turns on these longer boards due to the upright nature of the fins. As a quad set, it will feel fast, smooth and predictable while encouraging a more drawn-out term. Both configurations are designed to offer a feeling of control, with the freedom to surf radically on a mid-length.
- Designed for mid-lengths and hybrids
- Reactor Large / Performer Large Quad Trailers
- Pivotal Tri-Quad set for easy turning
- PC AirCore Construction
Board Types
- Designed to fit the FCS II Fin System.
- Performance boards with deep concaves and moderate-to-extreme rocker.
Fin Family
- Reactor Large / Performer Large Quad Trailer
Performance Glass
Performance Glass (PG) fins are machine cut from layers of solid fibreglass. These fins are stiff and are widely used by pro-level surfers because the integrity of the flex is maintained under immense force, and in the most extreme of conditions and situations.
LARGE (75Kg – 90Kg / 165 – 200 Lbs)
| Fin | Base (inches) | Base (mm) | Depth (inches) | Depth (mm) | Area (inches) | Area (mm) | Sweep Deg° | Foil |
| Front | 4.45 | 112.9 | 4.70 | 119.3 | 16.03 | 10341 | 32.0° | Flat |
| Centre | 4.40 | 111.7 | 4.54 | 115.2 | 14.80 | 9550 | 32.4° | 50/50 |
| Rear | 4.09 | 103.7 | 4.26 | 108.1 | 12.63 | 8150 | 32.4 | 80/20 |
